EVA GASKET SYSTEM
EVA sealing gasket series
Pre-formed EVA closed-cell foam sealing rings and roll stock for pail, drum and metal cover grooves. Products are supplied as manual rings/liners or automatic strip roll stock, with material grades selected according to cost, rebound, food-contact and solvent resistance requirements.
Two supply forms
Manual rings / liners
Pre-cut and joined rings for manual fitting into lid grooves. Suitable for sample orders, lower volume production and lids that need quick material validation.

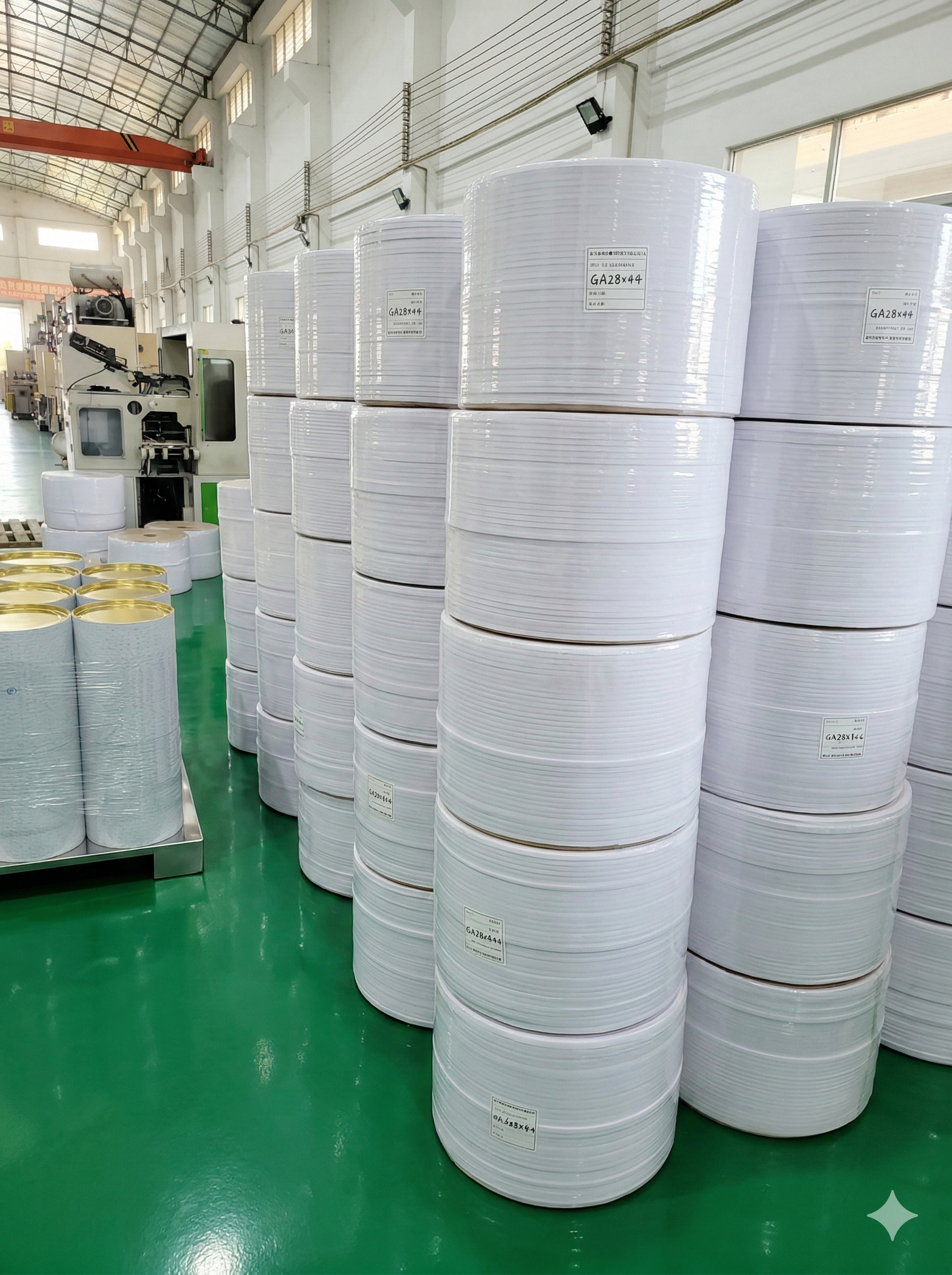

Automatic roll stock
EVA strips supplied in rolls for automatic lining machines. Width, thickness, length and core diameter are customized to match groove design and machine setup.
Material selection
| Grade | When to choose | Typical use | Documents |
|---|---|---|---|
| Economy / General | Cost-effective sealing for standard covers. | General pails and drums. | Series TDS |
| High density | More body and dimensional stability. | Grooves needing firmer gasket support. | Series TDS |
| High elastic | Higher rebound and compression recovery. | Paint, coating, chemical and food-contact pails requiring stronger recovery. | High elastic TDS |
| Food grade | Food-contact applications after validation. | Food pails and covers where compliance documents are required. | Series TDS |
| Solvent resistant | Solvent/chemical resistance is the first priority. | Paint, thinner, solvent-based coatings and aggressive chemical pails. | Solvent TDS |
